Rs v8 1.1-8x24 m 60

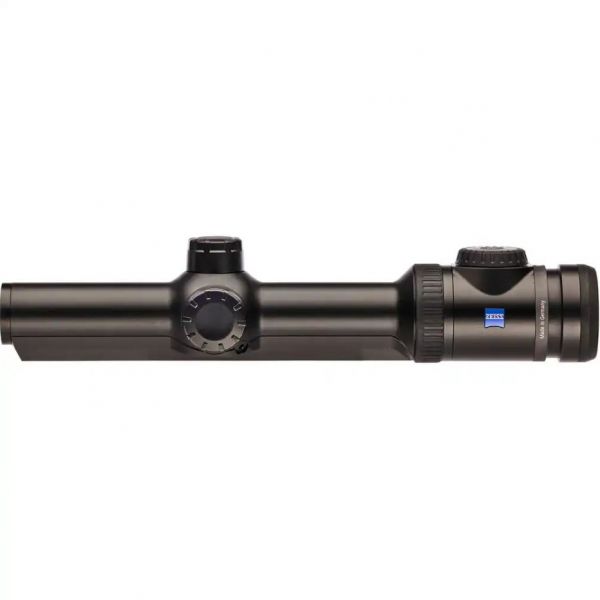

Информация: Maximum overview and visible comfort: the eye box of the ZEISS V8 1.1-8x24 is larger than the human pupil, maximizing the area in which the hunter sees the entire image. This gives them more room to position their eye and enables them to acquire targets much more quickly – a crucial advantage during driven hunts. Together with its 1.1x magnification, this means the ZEISS V8 1.1-8x24 is ideally suited for quick shots at close range.

Magnification

1.1 – 8 ×

Effective lens diameter

10.6 – 24 mm

Light transmission

92%

Exit pupil diameter

9.9 – 3.1 mm

Twilight factor

3.4 – 13.9

Field of view at 100 m (yds)

39.6 – 5.4 m (119 – 16 ft)

Objective viewing angle

22.2° – 3°

Diopter adjustment range

− 3.5 | + 2 dpt

Eye relief

92 mm (3.6 ")

Parallax setting

100 m (109 yds)

Vertical adjustment range at 100 m

500 cm

Lateral adjustment range at 100 m

320 cm

Adjustment per click at 100 m

1 cm

Centre tube diameter

30 mm

Eyepiece tube diameter

46 mm

Objective tube diameter

30 mm

LotuTec | Nitrogen filled

+ | +

Water resistance

400 mbar

Operating temperature

− 25°C | + 50°C (− 13°F | + 122°F)

Length

283 mm (11.1 ")

Weight (without inner rail)

550 g (19.4 oz)

Weight (with inner rail)

590 g (20.8 oz)

Read more
Параметры: Код товара: 522100-9960-000

Производитель: Zeiss

Увеличение: 8x

Диаметр объектива (мм): 24

Средний диаметр (мм): 30

Светопропускание (%): 92%

Прицельная сетка: 60

Тип монтажа: Рельса

Bес (кг): 0.59

Отзывов пока нет

Rs v8 1.1-8x24 m 60

Be the first to review this product

2 800,00 €

Наличие: В наличии

Осталось всего 1

SKU

522100-9960-000

Отзывы

Отзывов пока нет

Magnification	1.1 – 8 ×
Effective lens diameter	10.6 – 24 mm
Light transmission	92%
Exit pupil diameter	9.9 – 3.1 mm
Twilight factor	3.4 – 13.9
Field of view at 100 m (yds)	39.6 – 5.4 m (119 – 16 ft)
Objective viewing angle	22.2° – 3°
Diopter adjustment range	− 3.5 \| + 2 dpt
Eye relief	92 mm (3.6 ")
Parallax setting	100 m (109 yds)
Vertical adjustment range at 100 m	500 cm
Lateral adjustment range at 100 m	320 cm
Adjustment per click at 100 m	1 cm
Centre tube diameter	30 mm
Eyepiece tube diameter	46 mm
Objective tube diameter	30 mm

Operating temperature	− 25°C \| + 50°C (− 13°F \| + 122°F)
Length	283 mm (11.1 ")
Weight (without inner rail)	550 g (19.4 oz)
Weight (with inner rail)	590 g (20.8 oz)

LotuTec \| Nitrogen filled	+ \| +
Water resistance	400 mbar
