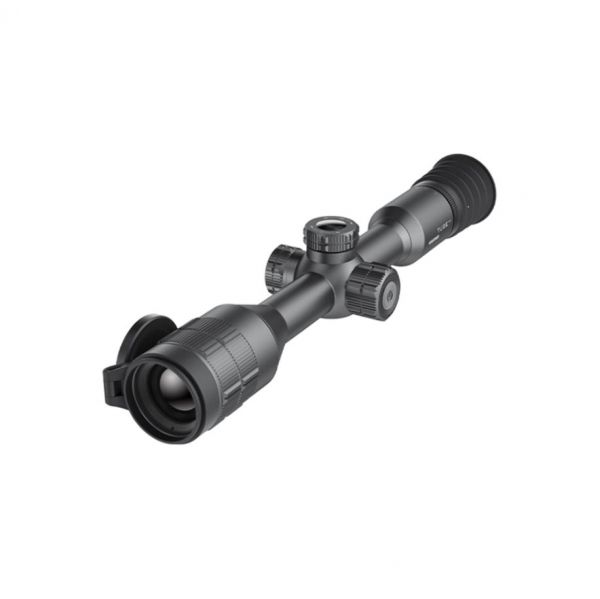

Digital night vision sight td70l v2

Details

High sensitivity

The larger the pixel size, the more light each pixel can collect. The Tube NV sensor with 4 um pixel size is extremely sensitive to low light. Even an hour after sunset, these sensors can generate clear color images. In the moonlight, the Tube NV captures details perfectly, allowing you to get clear and high-quality images. This sensor, which has a resolution of 1980 x 1080 with 4 μm pixels, allows for exceptional low-light sensitivity.

70 mm focal length

The focal length of the lens is 70 mm. The long focal length of the lens improves the experience of hunting distant targets and zooming in on the image.

Shooting

Each pixel in a digital NV viewfinder corresponds to a certain angle of view. The smaller this angle, the higher the accuracy. The TUBE NV sight features an exceptional accuracy of 0,2 MOA (5,7 mm @ 100 m), guaranteeing a fast and accurate shooting process.

See better

When the human eye is already struggling to see details, TUBE NV improves your recognition capabilities. From dawn to dusk, when daylight fades to darkness and the human eye struggles to see target detail, TUBE NV improves your chances.

Video recording features RAV

Never miss special moments with Recoil Activated Video (RAV), which automatically records video before and after your shot. In addition, using the microphone function, you can capture not only the image, but also the sound.

Sensor resolution, pixels 1920 × 1080
Pixel size, μm 4
Frame rate, Hz 50/25/Auto
Lens, mm 70mmF1.8
Field of view, º 4.7 × 3.5
Field of view (H × V), m@100 m 8.2 × 6.2
Optical magnification, × 5.5 ~ 22.0
Digital zoom, × 1 to 4
Diopter adjustment, D -4 to +4
Detection range, m 300
Ekranas 1440×1080 OLEDs
Battery Type Built-in 6600 mAh battery pack
Max. Operating time (t=22ºC)*, hours 9
External power supply 5V (Type-C)
Photo / Video recording Yes
Memory capacity, GB 32
security class IP67
Wi-Fi / mobile app Supports
Operating temperature, °C -20 to +50
Weight (without 18500 battery), g 945
Size, mm 383 × × 86 75
Body Material Aluminum
Max. Shotgun recoil power (Eo), joules 6000
IR illumination**, nm 850 / 940 (optional)
AND power, w 3
Mounting Standard 30mm rings
Product Parameters
  • Product code: 2DG1A
  • Manufacturer: Infiray
